Handlebar in ergal low 28 mm SRT motard

Print
  • Availability: Disponibile
  • New

SRT handlebar 28 mm motard

made in italy

More details

140,00 € 154,00 €

Handlebar variable section SRT MOTARD

Handlebars for SRT bikes with variable section are made in Italy, they are approved and products with very high precision and quality criteria. The handlebar is a structural element of the bike and must be safe.

The handlebar with variable section Motard SRT has a conical outer diameter that goes from 28 mm in the riser attachment area, to 22 mm in the control area (where there are the knobs) and is compatible with most of the bikes with 28 mm riser, the internal hole is 12 mm and allows the mounting of the HANDLEBAR GRIPS and of the handguards with an expansion system. The weight is only 650 gr. despite being light it has a very high resistance guaranteed by the ergal 7075 material (you can see the characteristics of the material here).

Attention to details

During production, the numerical control bending allows to perfectly replicate the measurements at each production cycle, after which the handlebars are brushed to eliminate the signs of the machinery. Finally it is anodised, this treatment gives the material a colored and bright finish that lasts over time without discoloring even after years of sun exposure.

Anodizing protects the handlebar against atmospheric agents and oxidation.

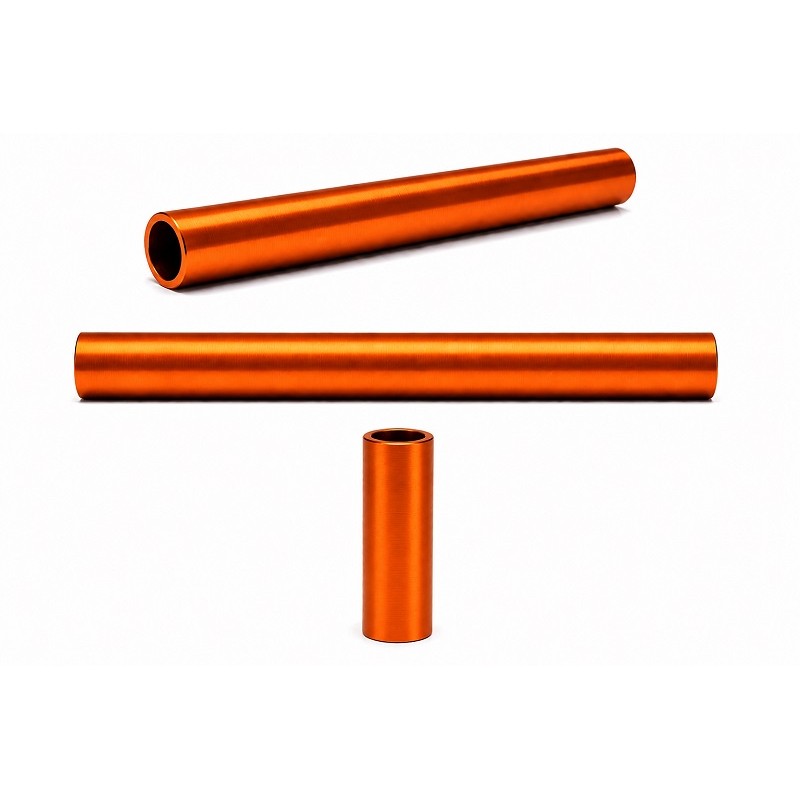

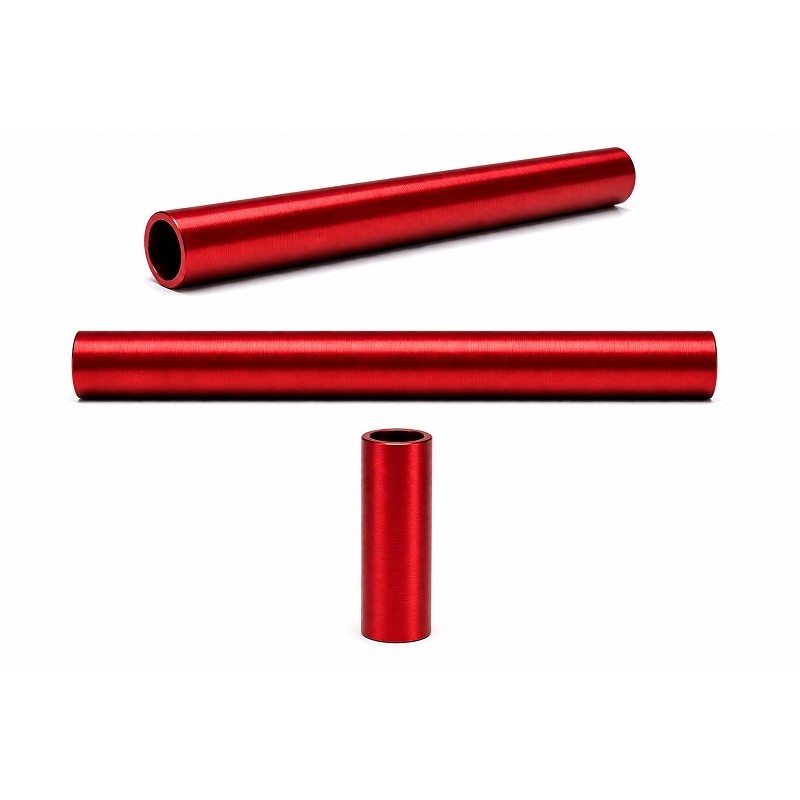

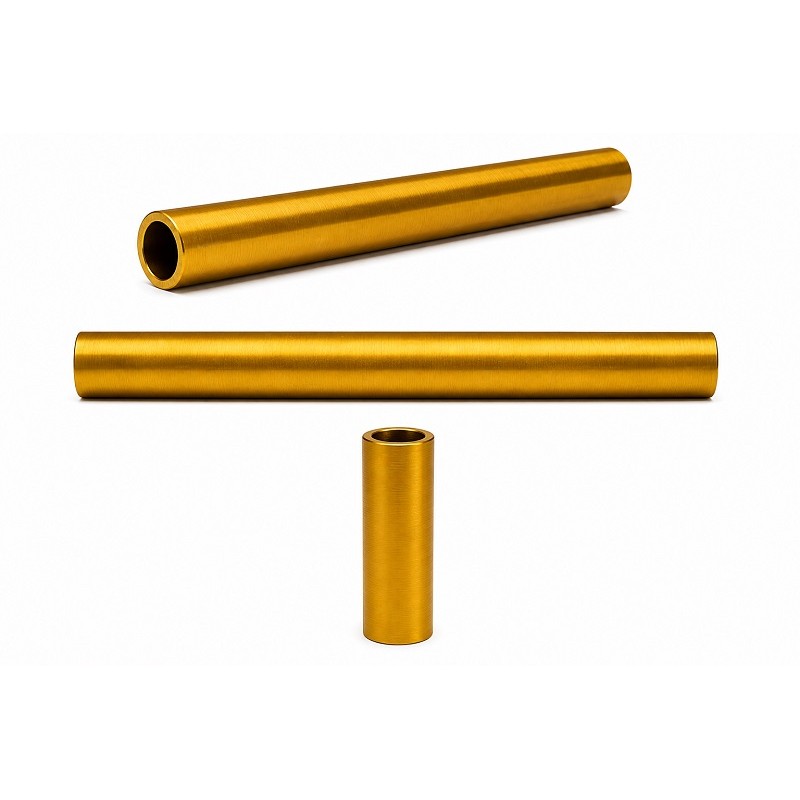

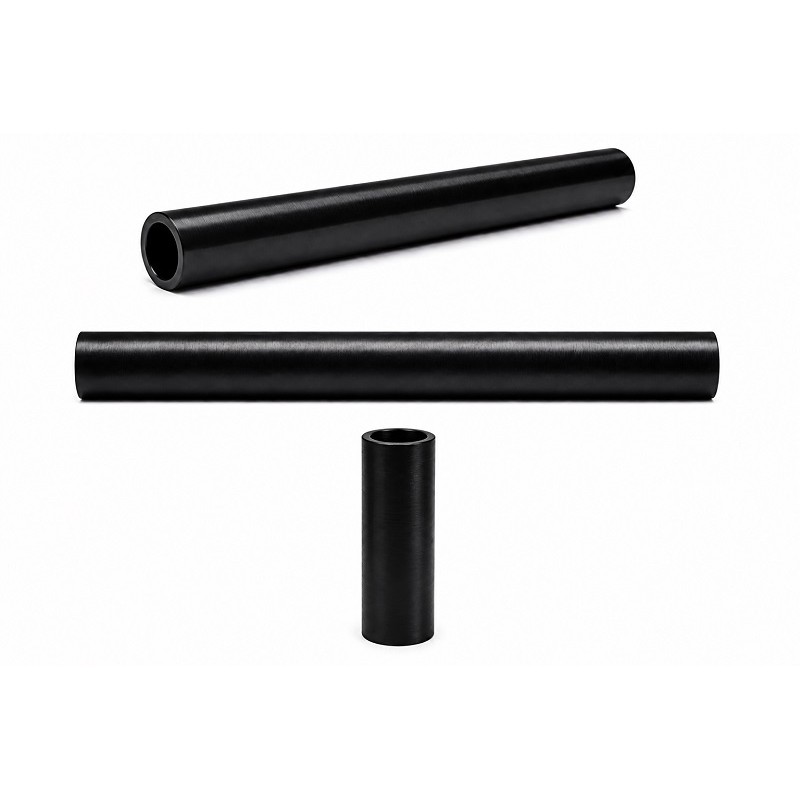

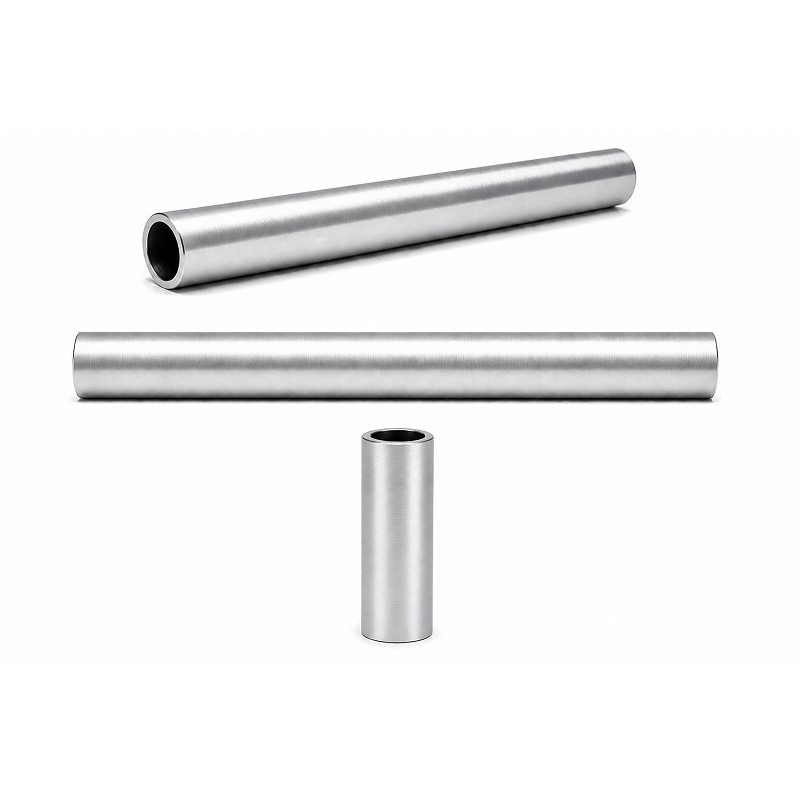

The SRT motorcycle handlebar is available in the colors:
red - black - gold - blue - silver - green - orange

manubrio moto srt

The safety of our motorcycle handlebar

    omologazione   lavorazioni di precisione   riduzione vibrazioni trasmesse al pilota      materiali ad elevata resistenza   minor peso rispetto al manubrio originale   high quality standard

For us, the handlebar is a fundamental and structural element of the bike, to which we place the utmost attention, must guarantee various parameters including rigidity and strength to ensure a safe driving especially off-road, where the stresses are greater, such as example on jumps or in the driving stages standing on the platforms.
This is why all our products, and in particular the handlebar for 22-28mm motorcycles with variable section, are designed and manufactured taking into account safety requirements as well as comfort and aesthetics.

The advantages of the handlebar for motard SRT with variable section 22 / 28mm.

The variable moatrd bar 28 SRT  has a taper system that reaches beyond the fold, ensuring a reduction in vibration of more than 15% and greatly increasing the rigidity compared to many handlebars with variable section of the competition.

The fold we made is perfect for off-road bikes and enduro bikes of the latest generation, this handlebar was created to ensure total control of the bike, increasing safety and improving handling, in addition the particular fold ensures a good feeling and a comfortable position even in standing riding.

The handlebar is supplied without holes for mounting the ignition switch and the throttle control.
At the top of the "data sheet" section you can check the measurements of our bike handlebars.

The length slightly longer than the original standard handlebar is such as to improve the lever effect that allows you to control and drive the bike making it more maneuverable and at the same time allows easy assembly on motorcycles with 22 mm handlebars without having to replace the cables.
manubrio motocross srt

But on my bike this handlebar mounts?

The SRT 28 mm handlebars with variable section are compatible on all motorcycles with RISER 28MM

- The diameter:

the knobs, the brake pump, the electric blocks and all the components mounted on the original handlebar of the bike are compatible, being all with a standard diameter of 22 mm and being the 22 mm handlebar in the "grips area". The handlebar is supplied without holes for mounting the ignition switch and the throttle control.

- Overall dimensions:

to choose the right bend you have to check the measurements. In the "data sheet" section on this page you will find the measures, such as width and height.

Check it out to figure out which handlebar is best suited to your needs.

manubrio motocross srt

The SRT 28mm motard handlebar can be mounted, for example, on:

- Aprilia
           Caponord 1200
           RXV 450 / 550

- Bmw
           R 1200 Gs

- Ducati
           Multistrada 1200 / 1100
           Diavel 1200

- Honda
           CRF 250 / 450
           XR 600 / 650
           AfricaTwin 1000

- Husqvarna
           SM 610 / 630
           SM 450 / 510
           Te 450 / 510
           SM 701

- Kawasaki
           KX-F 250 450

- Ktm
           Enduro 690
           Smr 690
           Exc 250 / 350 / 450 / 500 / 530
           SX 250 / 350 / 450 / 500 / 530

- Suzuki
           Rm-z 250 / 450

- Yamaha
           YZ-F 250 / 450
           SuperTenere 1200

  • Handlebar width 800 mm
  • Handlebar height 120 mm
  • Diameter handlebar 22 mm
  • Recess handlebar 55 mm
  • Width fixing handlebar 200 mm
  • Weight 600 gr
